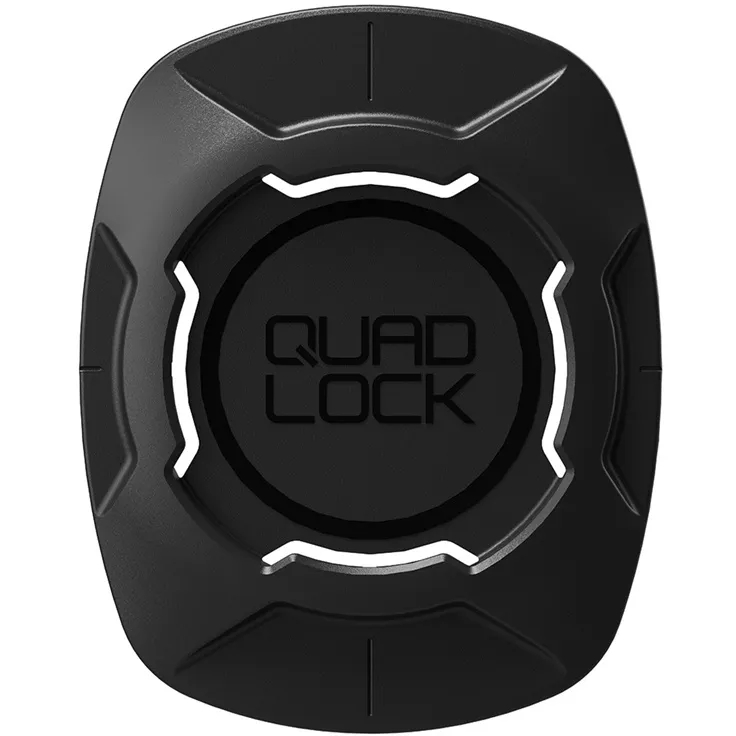

Quad Lock Universal Adaptor V3

Description

Highlights of the Quad Lock Universal Adapter

• 3M VHB is a disposable tape and cannot be reused


• Thin profile (5mm thick)


• 48mm wide and 60mm high


• Durable and robust composite construction


• Adheres to flat and slightly curved surfaces


• Compatible with original Quad Lock swivel and lock mounts


• Please note: Using the universal adapter may interfere with wireless charging

Details of the Quad Lock Universal Adapter

With a thickness of only 5 mm and 5.3 mm, the Quad Lock Universal Adapter and MAG Universal Adapter fit seamlessly on the back of most smartphones and cases.

The Quad Lock Universal Adapter uses a 3M VHB 4952 adhesive tape that adheres to smooth, non-textured, non-porous surfaces such as:

•



  •



    • Non-painted metals


    • Plastics such as PC, ABS, PVC, nylon, acrylic


    • Uncoated glass

The tape does not adhere to the following surfaces:

• Rubber, TPU, TPE


• leather


• silicone


• Hydrophobic coated glass (also known as anti-fingerprint glass, found on the back of most modern smartphones)


• Soft-touch coating or paint


• Plastics with low surface energy such as polypropylene (PP), polyethylene (PE), acetal, HDPE


• wood

Quad Lock strongly recommends using a case with the universal adapter if your phone has a glass back. Make sure the surface is thoroughly cleaned and dry before attaching the Universal Adapter.
